As an authorised partner of Siemens Transformer Guangzhou Co. Ltd. (STGZ), Synatac distribute high quality dry type transformer from Siemens Energy. Siemens Energy Geafol & Careco are built with highest safety standard and compliance to relevant laws and regulations. Siemens Energy dry type transformers conform with the fire behaviour class (highest as F1), climate class (highest of C3 on request) and environmental class (highest of E3 on request).
The coils of high voltage and low voltage windings are manufactured from aluminium / copper foils which committed to highest electrical safety. Insulation made of epoxy-resin and quartz powder mixture makes the transformer extensively maintenance free, moisture proof and suitable for the tropics, fire resistant and self extinguishing. The eco friendly material also make the transformer completely recyclable. The transformers are design in accordance with VDE 0532-76-11 / IEC 60076-11 / DIN EN 60076-11 and the Ecodesign Directive from the European Commission. Other standards, such as GOST, SABS, or CSA / ANSI / IEEE, can also be taken into account on request.

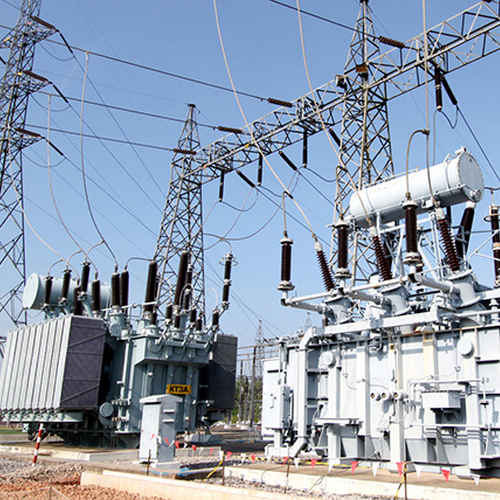

The oil immersed type transformers are normally for outdoor operation. The transformer are made of high quality core, copper/ aluminium winding and insulating with mineral/ ester oil. Large-scale oil channels are provided to ensure sufficient cooling of the windings and to avoid hot spots. The transformers are designed and type tested according to applicable international standard.
Medium Voltage Switchgear refers to a centralized collection of circuit breakers, fuses and switches (circuit protection devices) that function to protect, control and isolate electrical equipment. The circuit protection devices are mounted in metal structures. A collection of one or more of these structures is called a switchgear line-up or assembly.
Air insulated (AIS), Gas Insulated (GIS) and Hybrid type switchgears up to 36kV and rated short circuit current rating up 40kA are available by request. Products are type tested according IEC62271-200.
